Acoustic housing SHT 18 dB(A)

Acoustic enclosure up to 18 dB(A) sound reduction, measured according to DIN EN ISO 3744

solflex-ht100np-left-front-schalldaemmgehaeuse — HT100NP

solflex-ht100np-front-schalldaemmgehaeuse — HT100NP

solflex-ht100np-side-schalldaemmgehaeuse — HT100NP

solflex-ht100npsa-left-front-schalldaemmgehaeuse — HT100NPSA

solflex-ht100npsa-front-schalldaemmgehaeuse — Ht100NPSA

solflex-ht100npsa-right-schalldaemmgehaeuse — HT100NPSA

solflex-ht100npsa-back-schalldaemmgehaeuse — HT100NPSA

Advantages

Designed to reduce the noise emissions of refrigeration, air conditioners and heat pumps without compromising functionality
Ingenious intake and exhaust air separation for optimum efficiency of the built-in outdoor unit
Easy installation
Service and maintenance access possible
Protection against the weather and vandalism
Can be adapted in colour to the environment

Sound insulation SHT acoustic housing

Frequency (Hz)	63	125	250	500	1000	2000	4000	8000	16000
Sound insulation dB(A)	3,0	5,0	8,0	14,0	118,0	23,0	21,0	21,0	23,0

Measurement method

MP1

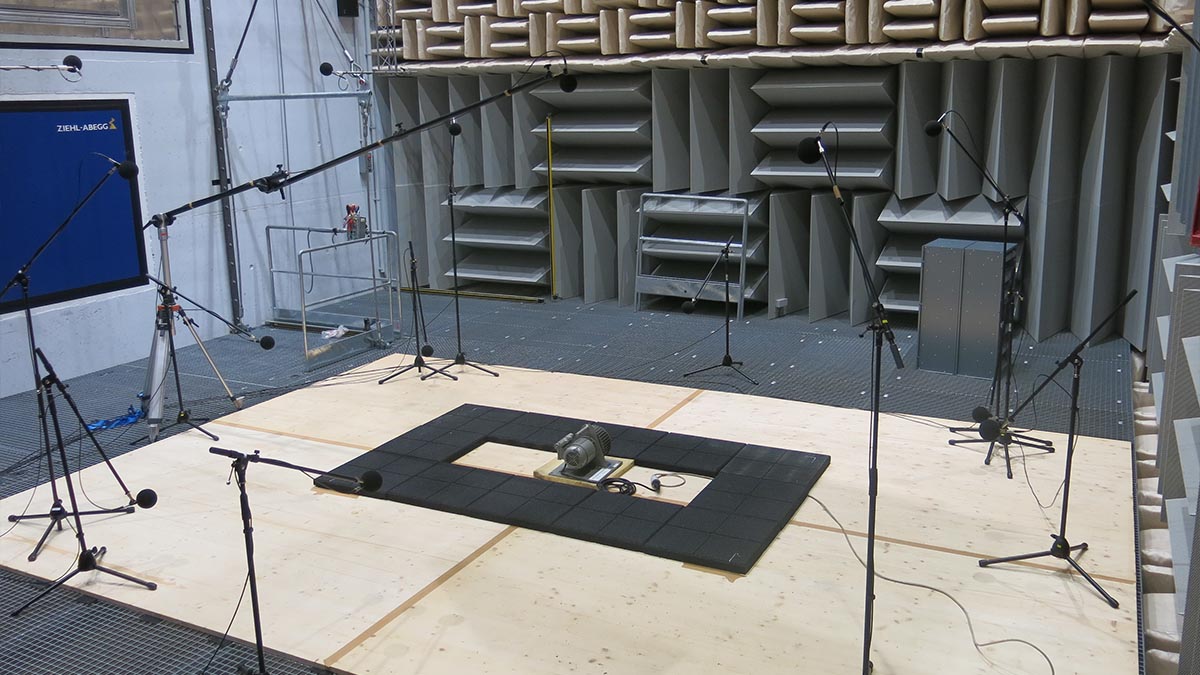

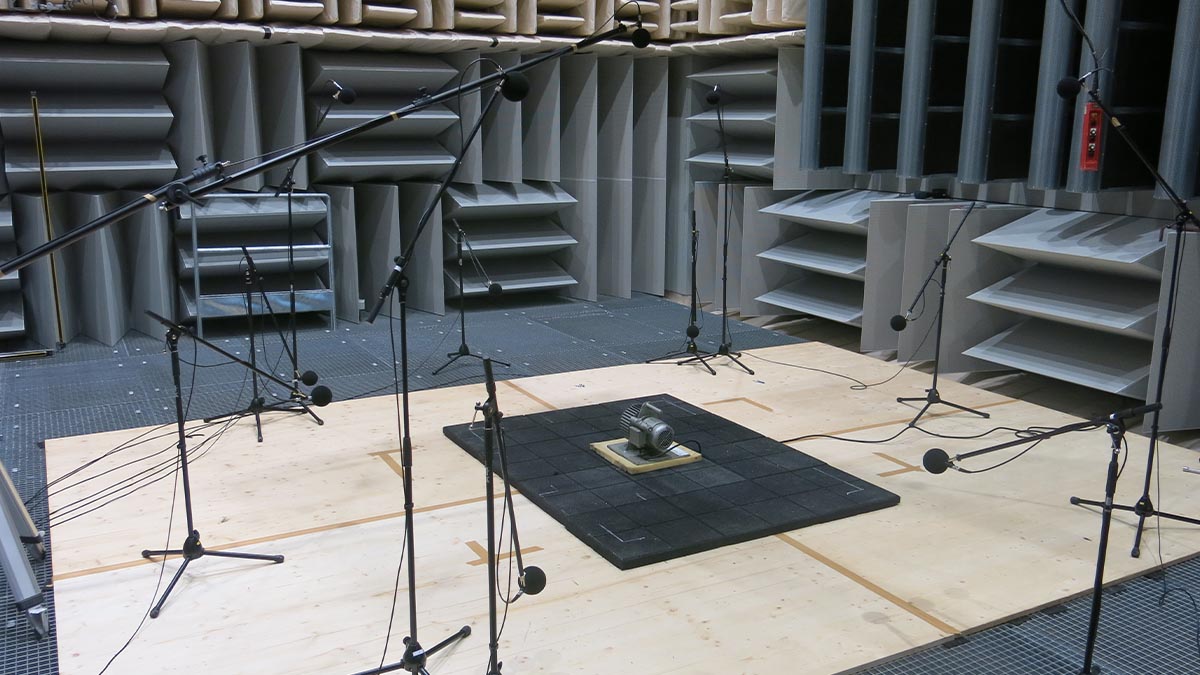

Sound power measurement (MP1) of the calibrated reference sound source over a spherical envelope with 12 microphones.

Acoustic data: Class 2 according to DIN EN ISO 3744, as third octave spectrum and octave spectrum.

MP2

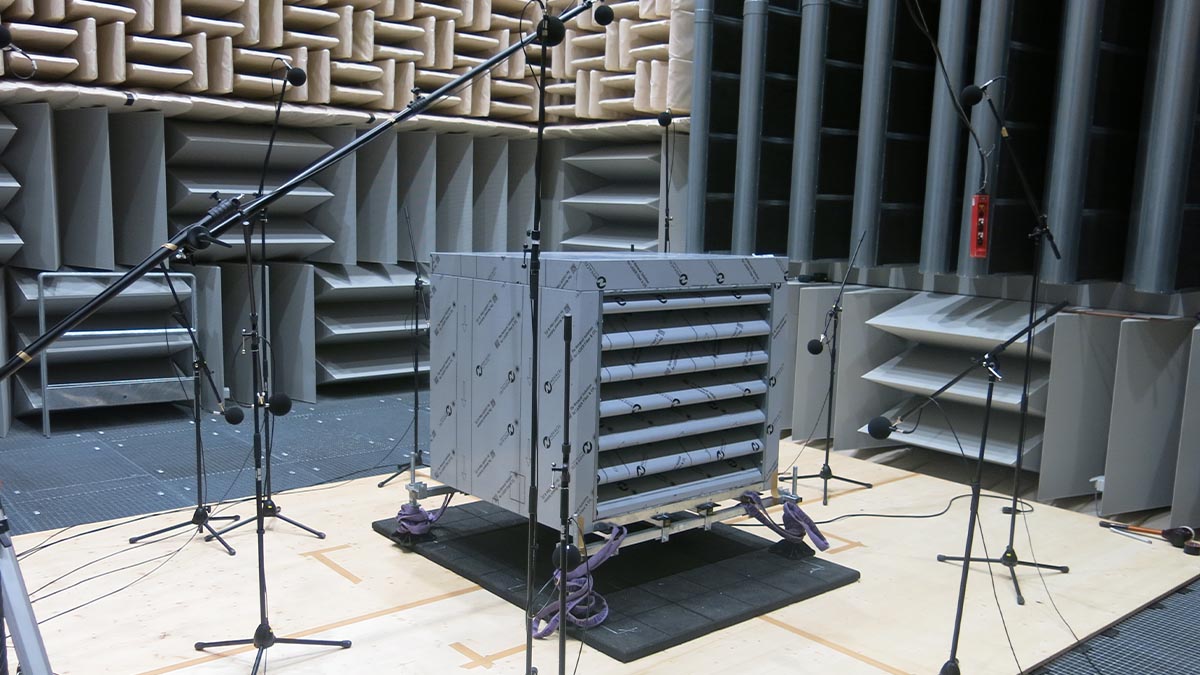

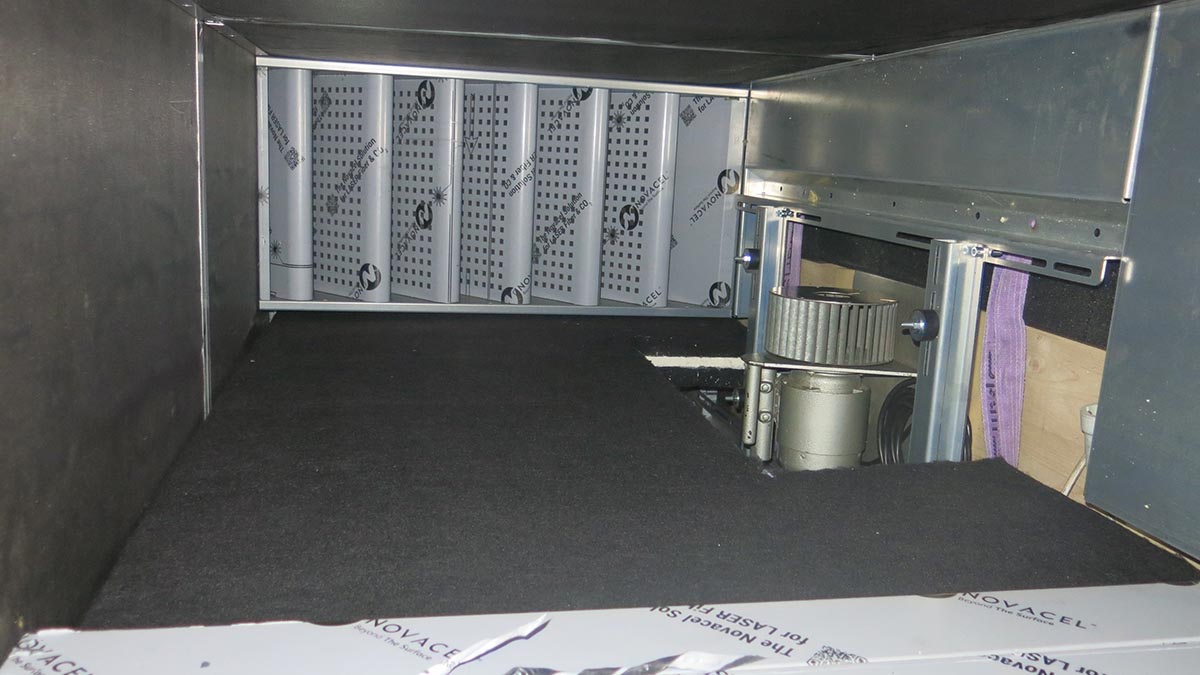

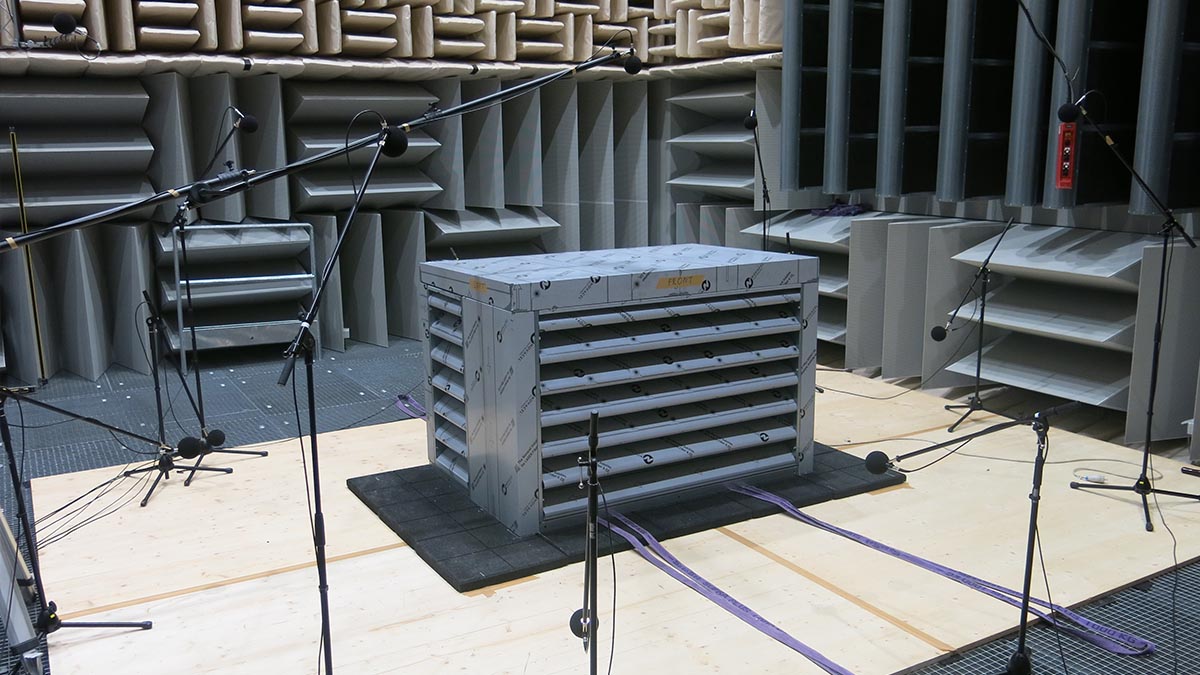

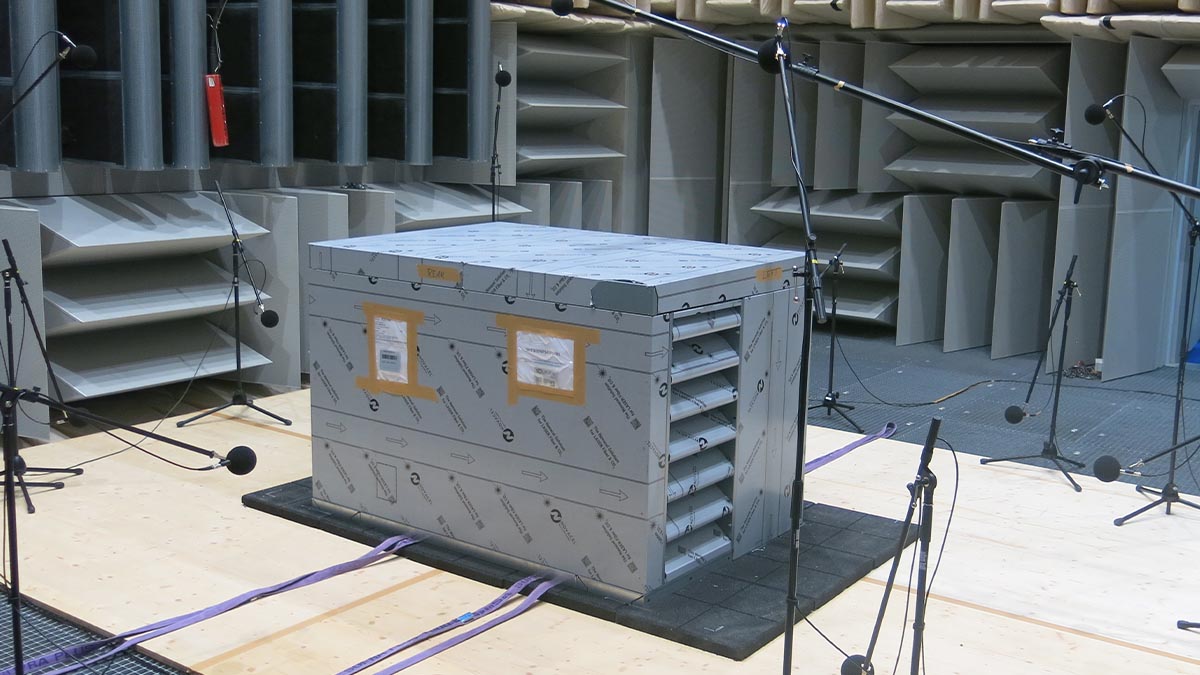

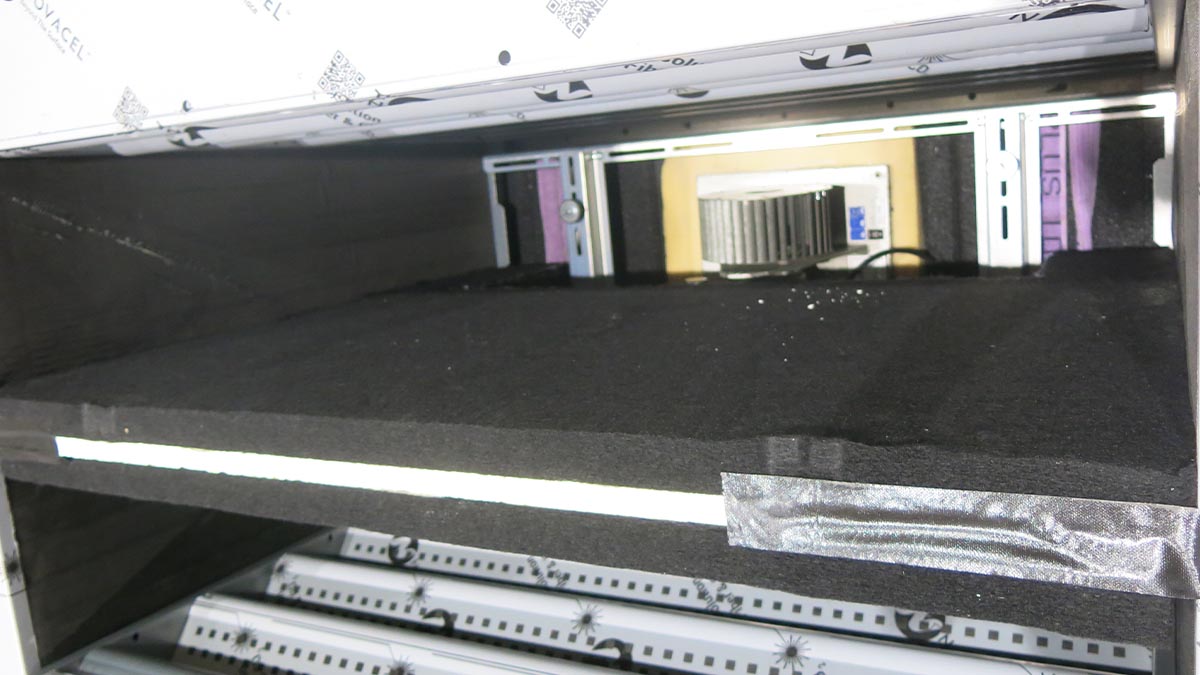

Sound power measurement (MP2) of the Solflex acoustic enclosure with reference sound source inside the acoustic housing over a spherical envelope with 12 microphones.

Acoustic data: Class 2 according to DIN EN ISO 3744, as third octave spectrum and octave spectrum.

MP1 – MP2 = sound level reduction by acoustic housing*

The difference between the two measurements is the sound level reduction of the acoustic housing.

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-1

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-2

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-3

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-4

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-5

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-6

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-7

solflex-SHT18-SHT100NP-schalldaemmgehaeuse-messverfahren-8

* The measurement tolerance of +/- 1.5 dB(A) or tolerance range of 3 dB(A) according to DIN EN ISO 3744 was not taken in consideration and we publish only the minimum sound level reduction values.

Pressure drop SHT acoustic cabin

Lowest pressure drop over the special acoustic grid with the same airflow direction of the installed outdoor unit.

Principle: rear intake, front exhaust

ΔPt (Pa)v (m/s)	71	161,5	282
SHT100NP	4800 m³/h	7100 m³/h	9500 m³/h
SHTX100NP	5900 m³/h	8900 m³/h	11800 m³/h
SHTY100NP	5600 m³/h	8400 m³/h	11200 m³/h
SHTXY100NP	7000 m³/h	10500 m³/h	14000 m³/h
SHT200NP	7100 m³/h	10600 m³/h	14200 m³/h
SHTX200NP	8900 m³/h	13300 m³/h	17700 m³/h
SHTY200NP	8000 m³/h	11900 m³/h	15900 m³/h
SHTXY200NP	9900 m³/h	14900 m³/h	19800 m³/h
SHT100NPVI	5500 m³/h	8200 m³/h	10900 m³/h
SHTX100NPVI	6700 m³/h	10000 m³/h	13300 m³/h
SHTY100NPVI	6500 m³/h	9700 m³/h	13000 m³/h
SHTXY100NPVI	7900 m³/h	11800 m³/h	15700 m³/h
SHT200NPVI	8500 m³/h	12800 m³/h	17000 m³/h
SHTX200NPVI	10300 m³/h	15500 m³/h	20600 m³/h
SHTY200NPVI	9500 m³/h	14300 m³/h	19000 m³/h
SHTXY200NPVI	11600 m³/h	17300 m³/h	23100 m³/h

Principle: lateral intake, front exhaust

ΔPt (Pa)v (m/s)	71	161,5	282
SHT100NPSA	5900 m³/h	8900 m³/h	11800 m³/h
SHTX100NPSA	7100 m³/h	10600 m³/h	14100 m³/h
SHTY100NPSA	7000 m³/h	10500 m³/h	14000 m³/h
SHTXY100NPSA	8400 m³/h	12600 m³/h	16700 m³/h
SHT200NPSA	8900 m³/h	13300 m³/h	17700 m³/h
SHTX200NPSA	10600 m³/h	15900 m³/h	21200 m³/h
SHTY200NPSA	9900 m³/h	14900 m³/h	19800 m³/h
SHTXY200NPSA	11900 m³/h	17800 m³/h	23800 m³/h
SHT100NPSAVI	6700 m³/h	10000 m³/h	13300 m³/h
SHTX100NPSAVI	7800 m³/h	11700 m³/h	15600 m³/h
SHTY100NPSAVI	7900 m³/h	11800 m³/h	15700 m³/h
SHTXY100NPSAVI	9300 m³/h	13900 m³/h	18500 m³/h
SHT200NPSAVI	10300 m³/h	15500 m³/h	20600 m³/h
SHTX200NPSAVI	12100 m³/h	18200 m³/h	24200 m³/h
SHTY200NPSAVI	11600 m³/h	17300 m³/h	23100 m³/h
SHTXY200NPSAVI	13600 m³/h	20400 m³/h	27100 m³/h

solflex-hcs100np-schalldaemmgehaeuse-luftfuehrung-kh-sbh-1

solflex-hcs100np-schalldaemmgehaeuse-luftfuehrung-kh-sbh-3

Easy installation

Disassembled ex works for delivery without crane and easy installation and maintenance access.

Intake & exhaust principle

Principle: rear intake, front exhaust

Version: Magnelis

Solflex Type	Housing dimensionsH x W x D [mm]	Weight[kg]	Max. dimensions for installation *H x W x D [mm]	Price **[€]
SHT100NP	1130 x 1310 x 1010	270	1010 x 1100 x 450	5.899,–
SHTX100NP	1130 x 1610 x 1010	330	1010 x 1400 x 450	7.199,–
SHTY100NP	1330 x 1310 x 1010	315	1210 x 1100 x 450	7.999,–
SHTXY100NP	1330 x 1610 x 1010	355	1210 x 1400 x 450	9.299,–
SHT200NP	1670 x 1310 x 1010	400	1550 x 1100 x 450	6.499,–
SHTX200NP	1670 x 1610 x 1010	465	1550 x 1400 x 450	7.899,–
SHTY200NP	1870 x 1310 x 1010	450	1750 x 1100 x 450	7.499,–
SHTXY200NP	1870 x 1610 x 1010	515	1750 x 1400 x 450	8.999,–
SHT100NPVI	1130 x 1500 x 1250	355	1010 x 1250 x 700	6.799,–
SHTX100NPVI	1130 x 1800 x 1250	420	1010 x 1550 x 700	8.399,–
SHTY100NPVI	1330 x 1500 x 1250	420	1210 x 1250 x 700	8.499,–
SHTXY100NPVI	1330 x 1800 x 1250	485	1210 x 1550 x 700	10.099,–
SHT200NPVI	1730 x 1500 x 1250	485	1610 x 1250 x 700	7.399,–
SHTX200NPVI	1730 x 1800 x 1250	550	1610 x 1550 x 700	9.099,–
SHTY200NPVI	1930 x 1500 x 1250	530	1810 x 1250 x 700	8.599,–
SHTXY200NPVI	1930 x 1800 x 1250	595	1810 x 1550 x 700	10.299,–
SHT100NPZ	1130 x 1500 x 1600	420	1010 x 1250 x 1050	8.399,–
SHTX100NPZ	1130 x 1800 x 1600	490	1010 x 1550 x 1050	9.299,–
SHTY100NPZ	1330 x 1500 x 1600	485	1210 x 1250 x 1050	10.999,–
SHTXY100NPZ	1330 x 1800 x 1600	575	1210 x 1550 x 1050	12.299,–
SHT200NPZ	1730 x 1500 x 1600	610	1610 x 1250 x 1050	9.599,–
SHTX200NPZ	1730 x 1800 x 1600	705	1610 x 1550 x 1050	10.599,–
SHTY200NPZ	1930 x 1500 x 1600	675	1810 x 1250 x 1050	10.699,–
SHTXY200NPZ	1930 x 1800 x 1600	785	1810 x 1550 x 1050	12.599,–

Principle: lateral intake, front exhaust

Version: Magnelis

Solflex Type	Housing dimensionsH x W x D [mm]	Weight[kg]	Max. dimensions for installation *H x W x D [mm]	Price **[€]
SHT100NPSA	1130 x 1610 x 1010	335	1010 x 1100 x 450	6.499,–
SHTX100NPSA	1130 x 1910 x 1010	410	1010 x 1400 x 450	7.899,–
SHTY100NPSA	1310 x 1610 x 1010	390	1210 x 1100 x 450	8.099,–
SHTXY100NPSA	1310 x 1910 x 1010	445	1210 x 1400 x 450	9.499,–
SHT200NPSA	1670 x 1610 x 1010	500	1550 x 1100 x 450	7.099,–
SHTX200NPSA	1670 x 1910 x 1010	580	1550 x 1400 x 450	8.699,–
SHTY200NPSA	1870 x 1610 x 1010	560	1750 x 1100 x 450	8.899,–
SHTXY200NPSA	1870 x 1910 x 1010	640	1750 x 1400 x 450	10.499,–
SHT100NPSAVI	1130 x 1800 x 1250	440	1010 x 1250 x 700	8.599,–
SHTX100NPSAVI	1130 x 2100 x 1250	520	1010 x 1550 x 700	10.699,–
SHTY100NPSAVI	1130 x 1800 x 1250	520	1210 x 1250 x 700	10.599,–
SHTXY100NPSAVI	1130 x 2100 x 1250	600	1210 x 1550 x 700	12.599,–
SHT200NPSAVI	1730 x 1800 x 1250	600	1610 x 1250 x 700	9.499,–
SHTX200NPSAVI	1730 x 2100 x 1250	680	1610 x 1550 x 700	11.599,–
SHTY200NPSAVI	1930 x 1800 x 1250	660	1810 x 1250 x 700	10.599,–
SHTXY200NPSAVI	1930 x 2100 x 1250	740	1810 x 1550 x 700	12.799,–
SHT100NPSAZ	1130 x 1800 x 1600	580	1010 x 1250 x 1050	10.699,–
SHTX100NPSAZ	1130 x 2100 x 1600	655	1010 x 1550 x 1050	13.899,–
SHTY100NPSAZ	1330 x 1800 x 1600	650	1210 x 1250 x 1050	14.299,–
SHTXY100NPSAZ	1330 x 2100 x 1600	745	1210 x 1550 x 1050	17.699,–
SHT200NPSAZ	1730 x 1800 x 1600	810	1610 x 1250 x 1050	10.499,–
SHTX200NPSAZ	1730 x 2100 x 1600	900	1610 x 1550 x 1050	11.799,–
SHTY200NPSAZ	1930 x 1800 x 1600	870	1810 x 1250 x 1050	12.799,–
SHTXY200NPSAZ	1930 x 2100 x 1600	975	1810 x 1550 x 1050	14.199,–

* The dimensions of the outdoor unit to be installed must be checked individually. For details, refer to the installation manual.
** List price excl. VAT and excl. delivery

Accessories / Options

HTFOOT	1 mounting bracket L: 450mm incl. 2 rubber dampers Silentblock ⌀30 H20 and fastening screws.	€ 149,–
HTFOOTVI	1 mounting bracket L: 700mm incl. 2 rubber dampers Silentblock ⌀30 H20 and fastening screws.	€ 149,–
HTFOOTZ	1 mounting bracket L: 1050mm incl. 2 rubber dampers Silentblock ⌀30 H20 and fastening screws.	€ 149,–
HTFEETML	2 mounting brackets L: 450mm mounting H: 190/290mm.	€ 239,–
HTFEETMLVI	2 mounting brackets L: 700mm mounting H: 190/290mm.	€ 249,–
HTFEETMLZ	2 mounting brackets L: 1050mm mounting H: 190/290mm.	€ 259,–
HTDRAINPAN	Condensate tray made of aluminum, including temperature-controlled electronic condensate tray heating, leaf retention grid and oil separator.	€ 679,–
HTDRAINPANVI	Condensate tray made of aluminum, including temperature-controlled electronic condensate tray heating, leaf retention grid and oil separator.	€ 689,–
HTDRAINPANZ	Condensate tray made of aluminum, including temperature-controlled electronic condensate tray heating, leaf retention grid and oil separator.	€ 699,–
SHTBOTTOMPLATE	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATEVI	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATEZ	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATEX	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATEVIX	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATEXZ	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATESA	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATESAVI	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATESAZ	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATESAX	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATESAVIX	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request
SHTBOTTOMPLATESAXZ	Sound attenuated base plate to mount the acousting housing on e.g. when standing onto metal grid base.	Price on request

SHT100NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHTX100NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHTY100NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY100NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHT200NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHTX200NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHTY200NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY200NPRALCUSTOM	Painted in custom RAL colour	Price on request
SHT100NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTX100NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTY100NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY100NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHT200NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTX200NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTY200NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY200NPVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHT100NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHTX100NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHTY100NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY100NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHT200NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHTX200NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHTY200NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY200NPSARALCUSTOM	Painted in custom RAL colour	Price on request
SHT100NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTX100NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTY100NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY100NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHT200NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTX200NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTY200NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTXY200NPSAVIRALCUSTOM	Painted in custom RAL colour	Price on request
SHTTRANSPORTEU	DAP delivery at place within EU with bulk transport; not discountable	Price on request
SHTTRANSPORTCH	DDP delivery at place within Switzerland with bulk transport; not discountable	Price on request
